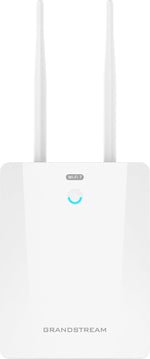

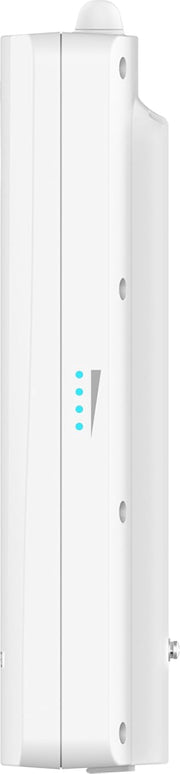

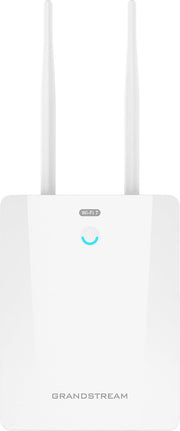

Grandstream GWN7670LR Outdoor Long-Range Wi-Fi 7 Access Point
The Grandstream GWN7670LR is an outdoor long-range Wi-Fi 7 access point designed for business networks that need extended wireless coverage and modern connectivity. It is suitable for warehouses, campuses, schools, hospitals, commercial premises, parks and other outdoor deployments.
Featuring BE3600-class Wi-Fi 7 performance, dual-band 2×2:2 MIMO and high-gain directional antennas, the GWN7670LR provides wireless connectivity over extended distances. Its 2.5 Gigabit Ethernet port supports PoE+ power, while the 2.5G SFP interface provides an additional high-speed wired connection option.
Key Features
-
Wi-Fi 7 technology: Supports IEEE 802.11be alongside earlier Wi-Fi standards.
-
BE3600-class wireless: Theoretical combined wireless data rates of up to approximately 3.57 Gbps across both bands.
-
Long-range coverage: Manufacturer-rated coverage of up to 350 metres, depending on the environment.
-
Directional antennas: Integrated directional antennas help focus wireless coverage; external omnidirectional antennas are also supported.
-
2.5GbE connectivity: One 2.5 Gigabit Ethernet port with PoE+ input.
-
2.5G SFP interface: Supports a compatible SFP connection for network integration.
-
PoE+ powered: Supports IEEE 802.3at power input.
-
Outdoor deployment: Designed for wall or pole mounting, with mounting kits included.
-
Network management: Supports Grandstream GDMS Networking cloud management and GWN Manager.
-
Advanced Wi-Fi features: Supports OFDMA, beamforming, WPA3 security and mesh networking.
-
Client capacity: Supports up to 256 concurrent Wi-Fi clients.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Grandstream |
| Model | GWN7670LR |
| Product type | Outdoor long-range Wi-Fi access point |
| Wi-Fi generation | Wi-Fi 7 |
| Wireless class | BE3600 |
| Wireless standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Frequency bands | 2.4 GHz and 5 GHz |
| MIMO | 2×2:2 on both bands |
| Maximum aggregate wireless data rate | Approximately 3.57 Gbps |
| Ethernet interface | 1 × 2.5GbE RJ45 with PoE+ input |
| SFP interface | 1 × 2.5G SFP |
| Power input | PoE+ (IEEE 802.3at) |
| Maximum power consumption | 15.5 W |
| Maximum rated coverage | Up to 350 metres |
| Concurrent clients | Up to 256 |
| Management | GDMS Networking and GWN Manager |
| Mounting | Wall or pole mounting |
| Operating temperature | -30°C to 60°C |
Package Contents
-
Grandstream GWN7670LR access point
-
Antennas and mounting hardware
-
Quick Installation Guide and regulatory documentation
Power adapter is not included in the manufacturer's standard package contents. A compatible PoE+ switch or injector is required to power the access point through Ethernet.
Recommended Applications
-
Outdoor wireless networks for schools and campuses
-
Warehouses, factories and commercial premises
-
Hotels, resorts and outdoor hospitality areas
-
Parks and large outdoor facilities
-
Long-range wireless network deployments
-
Business networks requiring Wi-Fi 7 connectivity
Actual wireless throughput and coverage depend on mounting position, obstacles, interference, client devices and local wireless regulations. The advertised maximum range is not a guarantee of usable high-speed connectivity throughout that distance.
